Prefilled Automatic Pen Injector (Three Step)

Table of contents

1Product Certifications

Product Certifications

China CDE No.B20250000729

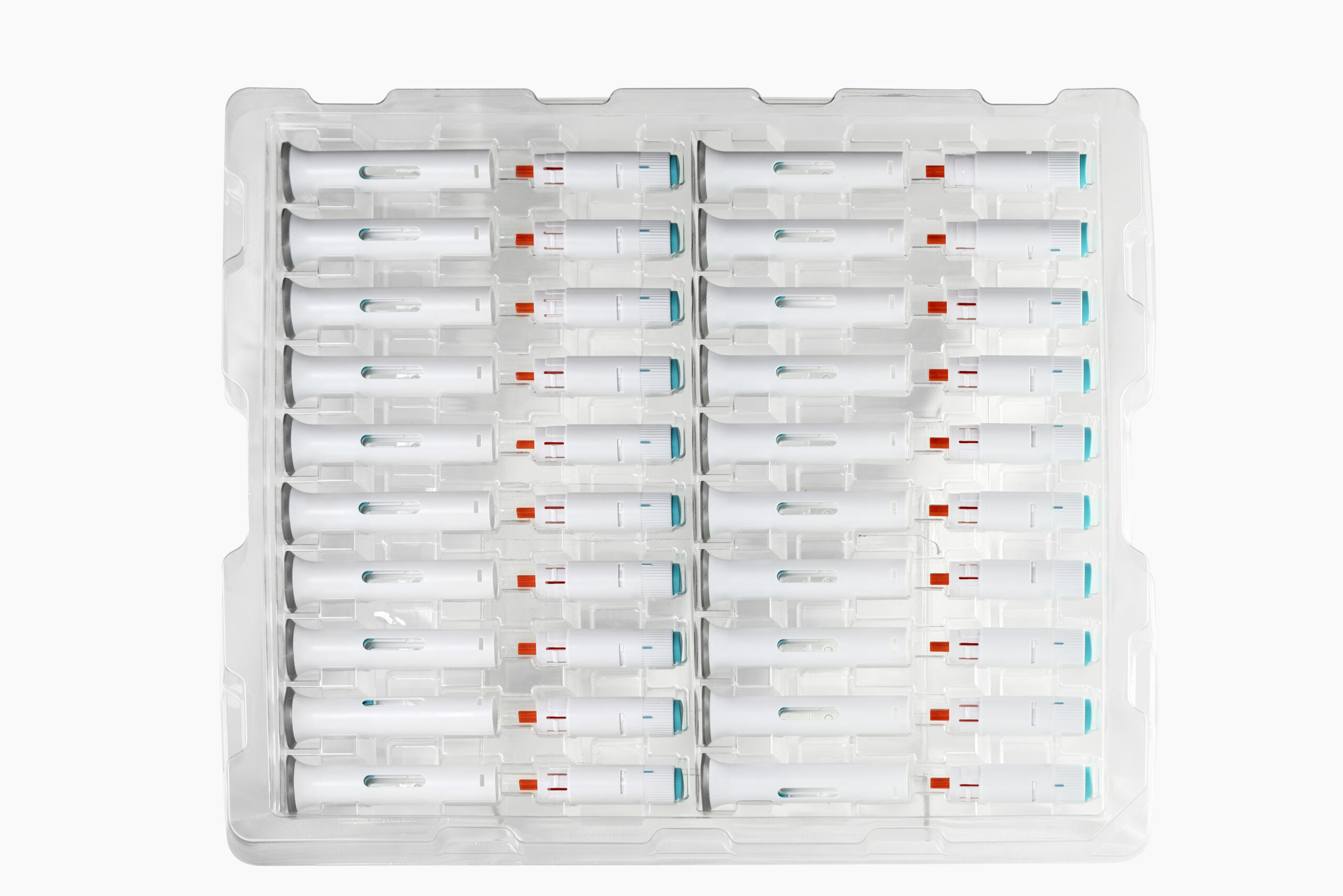

Tray Packaging

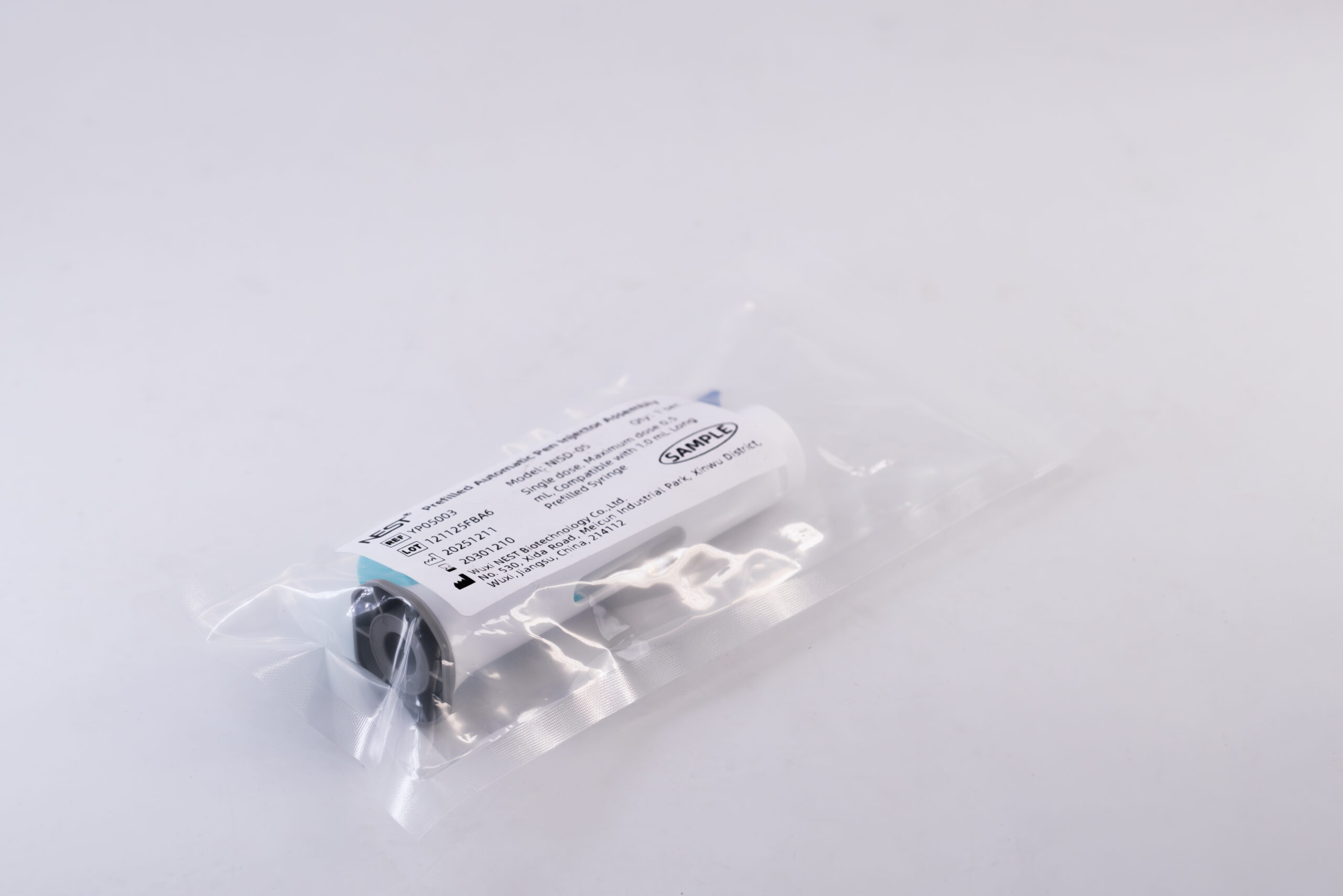

Turnover Box Packaging

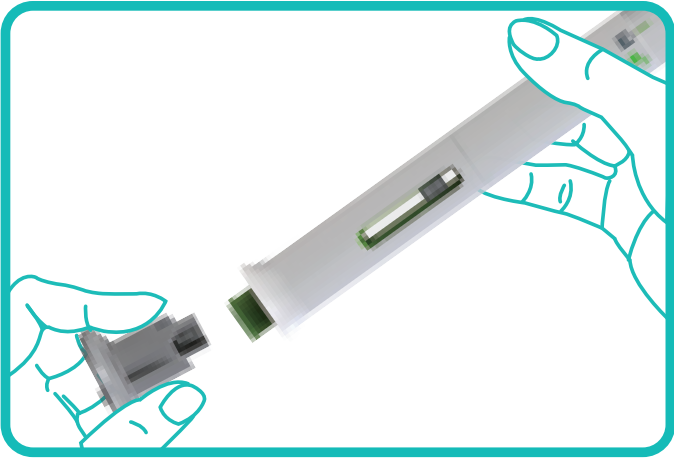

Remove the Pen Cap

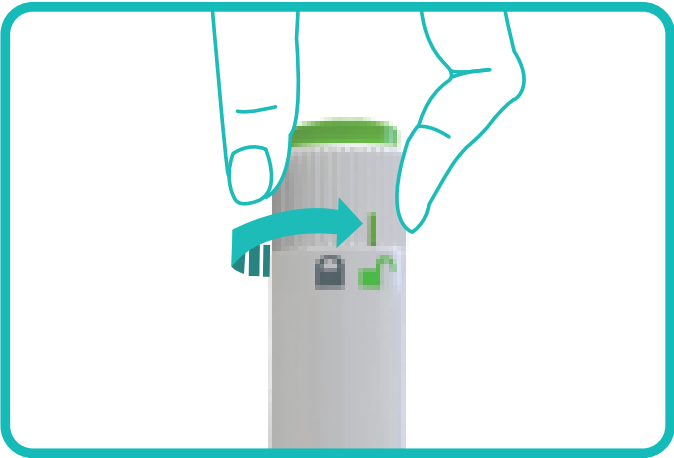

Hold Vertically Against the
Injection Site and Unlock

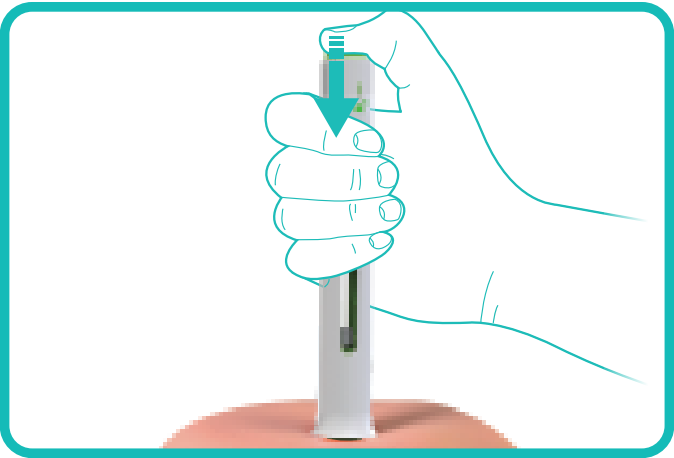

Press the Rear Button to
Activate

Three-Step Operation: Locking mechanism effectively prevents accidental activation.

Anti-Roll Design: Pen cap features a standable anti-roll structure for convenient placement.

Hidden Needle: Needle remains fully concealed, reducing needle anxiety and improving injection success.

Needle Safety Device: Protective cover automatically deploys and locks after injection to prevent needle-stick injuries.

Large Viewing Window: Allows clear observation of medication and injection.

Visual & Auditory Feedback: Dual cues enhance patient confidence in self-administration.

FTO Analysis Completed: Covered China, the U.S., the U.K., and Europe.

Built-in Container Specifications	1.0mL Long PFS
Filling Volume	0.2-1.0mL
Needle Diameter	29 G TW or Larger
Dose Delivery Efficiency	≥96.5%
Injection Start Force	≤30N
Injection Time	≤10s
Needle Insertion Depth	6mm±2mm
Protective Locking Force	≥60N
Needle Safety Distance	≥4.5mm
Injection Feedback	Visual and Auditory Feedback
