COP/COC Prefillable Vial

Table of contents

1Product Qualifications

2High-quality Controlled Manufacturing Processes

3Product Applications

4Product Advantages

5Product Specifications

6Product Components

7RTU Nest Box/Plate

8RTU Pre-sterilized, Ready-to-use Packaging

Product Qualifications

COP/COC as a high-quality alternative to borosilicate glass, offers excellent material stability and high design flexibility. Its shatter-resistant nature significantly reduces the risk and cost of breakage during transportation and use. In terms of physicochemical properties, COP/COC provides high transparency, high rigidity, and excellent thermal stability (resistant to both high and low temperatures). It also has very low protein adsorption, contains no heavy metals or tungsten extractables, and eliminates the risk of delamination commonly associated with glass. This ensures a safer and more reliable packaging environment for long-term contact with biologic drugs.

COP/COC prefilled vials feature an inert contact surface and have been proven suitable for a wide range of pharmaceutical applications. They provide enhanced packaging safety, especially for manufacturers handling toxic or highly potent drugs.

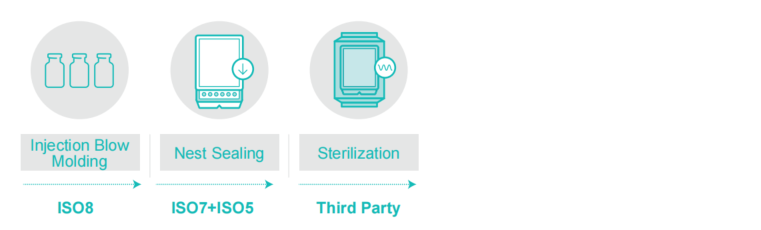

High-quality Controlled Manufacturing Processes

Product Applications

Primarily used for high-value drugs with stringent packaging requirements, such as cell and gene therapies, oncology drugs, and cardiovascular and cerebrovascular treatments.

Product Advantages

Compliant with ISO 9001, ISO 8362, and YBB standards

Excellent barrier against water vapor and oxygen

Outstanding drug stability, low protein adsorption, temperature tolerance: -196 °C to 121 °C

No release of heavy metal ions or delamination

High transparency and impact-resistant strength

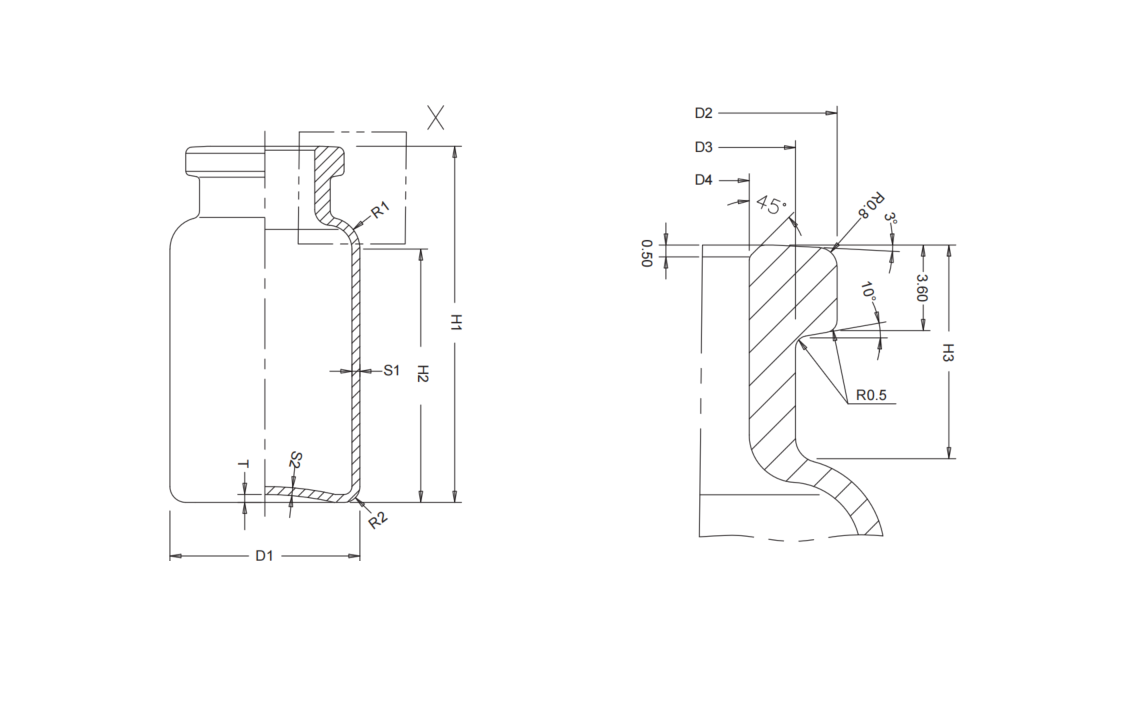

Product Specifications

Specification	Recommended volum Fill (mL)	Full Fil Capacity (mL)	D1	D2	D3 (max	D4	H1	H2 (min)	H3	R1	R2	S1	S2(min)	T(max)	Weight (g)
2R	2	4	16	13	10.5	7	35	22	8	2.5	1.5	1	0.6	0.7	2.6
6R	5	10	22	20	16.5	12.6	40	26	8.5	3.5	2	1	0.7	0.7	4.7
10R	10	13.5	24	20	16.5	12.6	45	30	9	4.0	2	1	0.7	0.7	5.6
20R	20	26	30	20	17.5	12.6	55	35	10	5.5	2.5	1.2	0.7	1	8.6

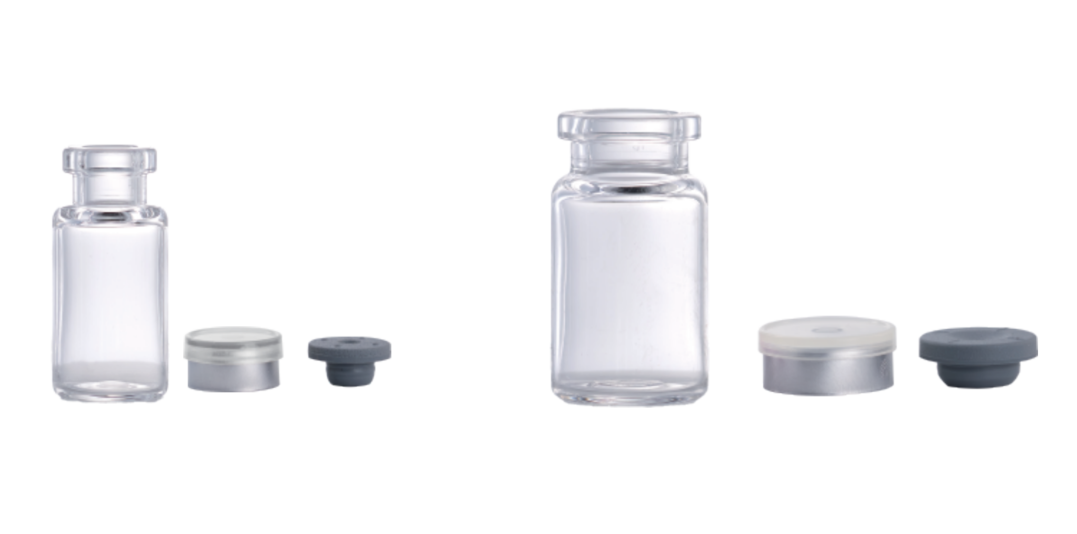

Product Components

Component	Material Description	Regulatory Compliance
Vial Body	COP	ISO 8362-1
Rubber Stopper	Halobutyl Rubber	YBB00042005 ISO 8362-2
Aluminum Cap	Aluminum	YBB00372003 ISO 8362-3
Nest Box	HIPS	ISO-21882
Nest Plate	POM	ISO-21882

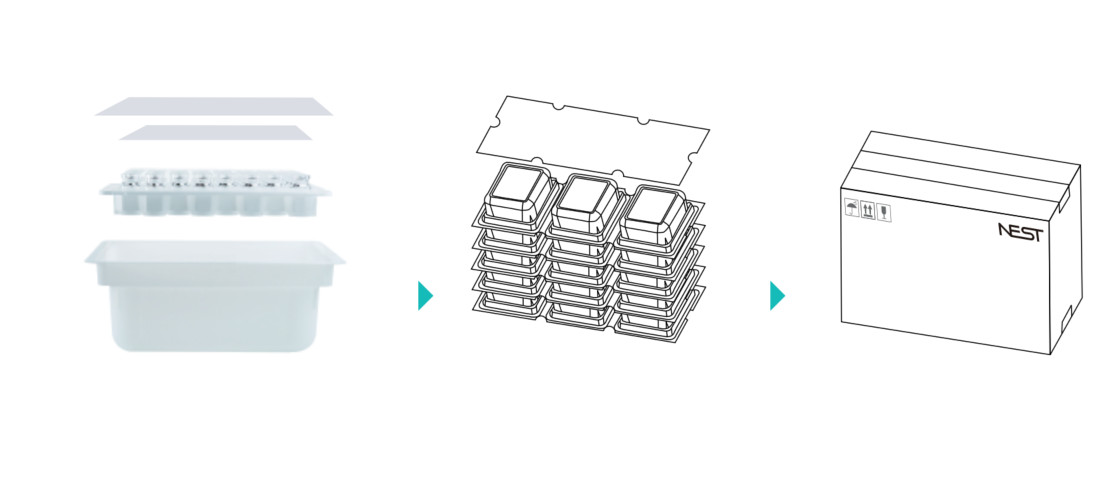

RTU Nest Box/Plate

RTU Pre-sterilized, Ready-to-use Packaging

Specification	Pcs/pk	Pks/case	COP Cat.No.	COC Cat.No.
2R	100	15	207212	226212
6R	48	15	207012	226002

Name	Pcs/bag	bags/case
Piston	100	15
Piston	7000	1
