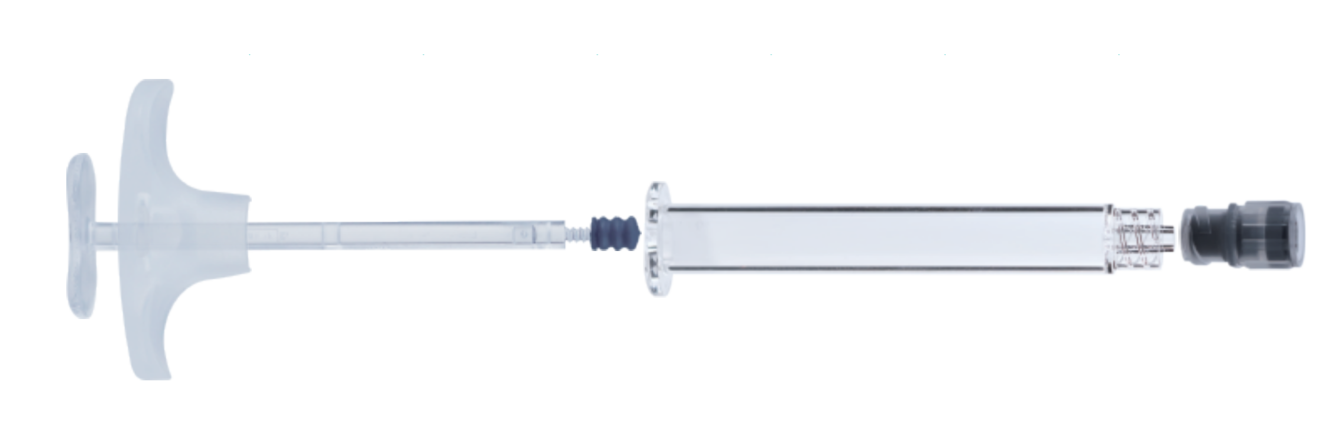

COP/COC Prefilled Syringe Assembly

Table of contents

2High-quality Controlled Manufacturing Processes

Product Introduction

COC/COP prefilled syringes are a new type of liquid drug packaging, with the medication preloaded in the container. The syringe features a Luer connection at the tip, allowing injection simply by attaching or twisting on the needle. Compared with traditional glass syringes, they are lighter, more impact-resistant, less prone to breakage, highly transparent, chemically stable, and reduce extractables, enhancing medication safety

High-quality Controlled Manufacturing Processes

Product Applications

Biologics (GLP-1, hormones, monoclonal antibodies, etc.)

High-end therapeutic drugs (antithrombotic agents, intravitreal ophthalmic injections, etc.)

Vaccines and nucleic acid therapeutics (mRNA vaccines, DNA vaccines, etc.)

Aesthetic and specialized drug delivery (hyaluronic acid, emergency medications, etc.)

Product Advantages

Compliant with ISO 9001, YBB, and USP Class VI standards

Manufactured in GMP-controlled cleanrooms from injection molding to final packaging

Flange enables easier assembly/disassembly and provides smooth, consistent injection performance

Plunger rod compatible with high-speed filling lines

Available in 1.0 mL, 1.0 mL slim, 2.25 mL, and 3.0 mL sizes

Luer lock design for flexible compatibility with needles and multifunctional connectors

Proprietary cross-linked siliconization with strong silicone bonding, stable gliding performance, and low drug residue.

Excellent sealing performance, reducing leakage, needle rotation, and dislodgement during injection

1.0 mL, threadless design

6% taper friction fit

Mature and stable interface, easy to operate with high connection efficiency

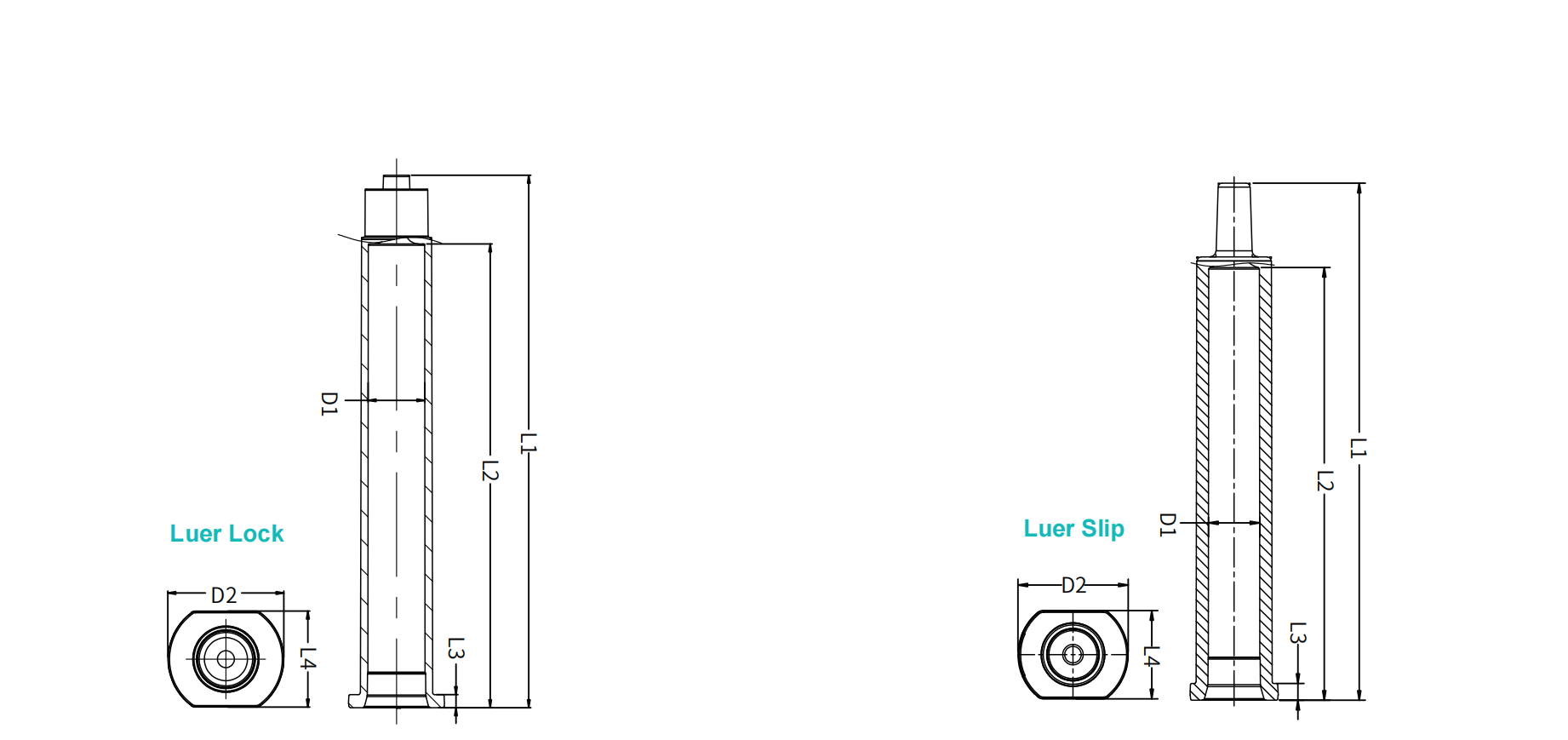

Product Specifications

Specification	L1	L2	L3	L4	D1	D2
Luer Lock (mm)
1.0 mL	64.5	54	2.1	11	φ6.35	φ13.8
1.0 mL Long	80	69.8	2.3	11	φ4.95	φ13.8
2.25 mL	64.5	54	2.1	14.7	φ8.65	φ17.75
3.0 mL	81.4	70.9	2.1	14.7	φ8.65	φ17.75
Luer Slip（mm)
1.0 mL	64.5	54	2.1	11	φ6.35	φ13.75

Product Specifications

Component	Material Description	Regulatory Compliance
Barrel	Cyclic Olefin Copolymer (COC)	ISO 80369-7 GB/T 1962.2
Cap	Butyl Rubber	YBB00082004 ISO 11040-6
Plunger	PC/PP	Corporate Standard
Piston	Butyl Rubber	ISO 11040-5
Flange	PP	Corporate Standard
Silicone Oil	Silicone Oil	Dimethyl silicone oil monograph in USP-NF / EP
Nest Box	HIPS	ISO 11040-7
Nest Plate	PP	ISO 11040-7
