Name: Cell Culture Plate, Flat, TC Treated, Sterile
Availability: InStock

Feature

Sterilized by E-beam, SAL=10-6.

High clarity, 100% virgin polystyrene.

The configuration complies with the ANSI-SBS format.

The plate lid is designed with cut corners and a condensation ring, reducing the risk of contamination.

Non-Pyrogenic, DNase/Rnase free.

The bottom is flat and clear, with each hole labeled for easy differentiation.

Product Details

Optically clear USP grade VI virgin polystyrene - ideal for microscopy
Alphanumeric markings for easy sample ID
SBS/ANSI Footprint, suitable for automation
Raised edges to slow evaporation
Small feet on the bottom of the plate to prevent scratching microscope objectives
Clear lot number printed on each flask for traceability
Notched bottoms with raised edges for stable stacking

Quality Details

Manufactured in cGMP (21 CFR part 820/821) compliant factory
Produced in ISO 13485:2016 and ISO 9001 facility
Molded and packed in ISO 7 cleanroom
E-beam sterilized and lot tested to SAL 10^-6
Lot tested free of pyrogens USP 85
Lot tested free of cytotoxins/pyrogens In Vivo USP 88 and In Vitro USP 87
Lot tested free DNase/RNase and DNA
Lot tested free BSE/TSE
Certified free of animal products

FAQs- Tissue Culture Plates

What are tissue culture plates used for?

Tissue culture plates are used to grow and analyze cells in applications like drug screening, cell-based assays, ELISA, and microscopy. Multi-well formats allow for efficient, high-throughput workflows.

TC treated plates have a surface modification that promotes cell attachment, making them ideal for adherent cell lines.

What is the difference between TC-treated and non-treated plates?

TC-treated: For adherent cells

Non-treated: For suspension cells

What well formats are available?

Available in 6, 12, 24, 48, 96, and 384 well formats to support low- to high-throughput applications.

Are these plates compatible with automation?

Yes. Plates follow standard SBS/ANSI dimensions for use with automated liquid handlers and plate readers.

Are the plates sterile?

Yes. Plates are sterilized (SAL 10⁻⁶), DNase/RNase free, and non-pyrogenic, suitable for sensitive applications.

Why choose individually wrapped plates?

Individually wrapped plates provide maximum sterility and contamination control, ideal for cleanroom and GMP environments.

How do these compare to competitor brands?

These plates are designed as equivalents to major brands like Corning, Falcon, Thermo Scientific, and VWR, offering comparable performance and consistency.

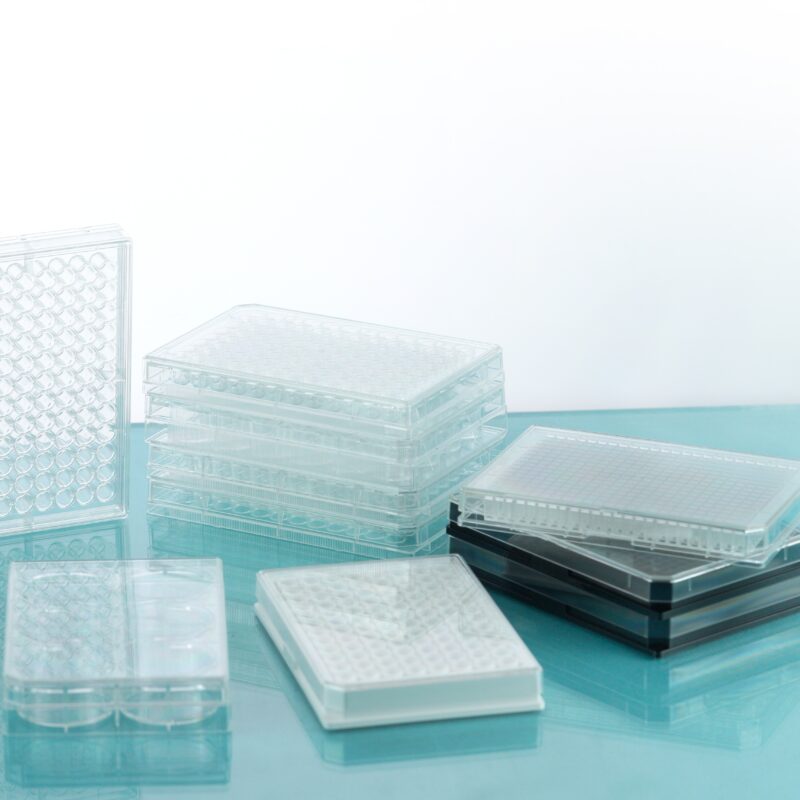

Cell Culture Plates

Well Number	Cell Growth Area (cm²)	Recommended Medium Volume (mL)	Bottom Type	Colour	Packaging	/Pack	/Case	Cat.No.
Well Number	Cell Growth Area (cm²)	Recommended Medium Volume (mL)	Bottom Type	Colour	Packaging	/Pack	/Case	TC Treated

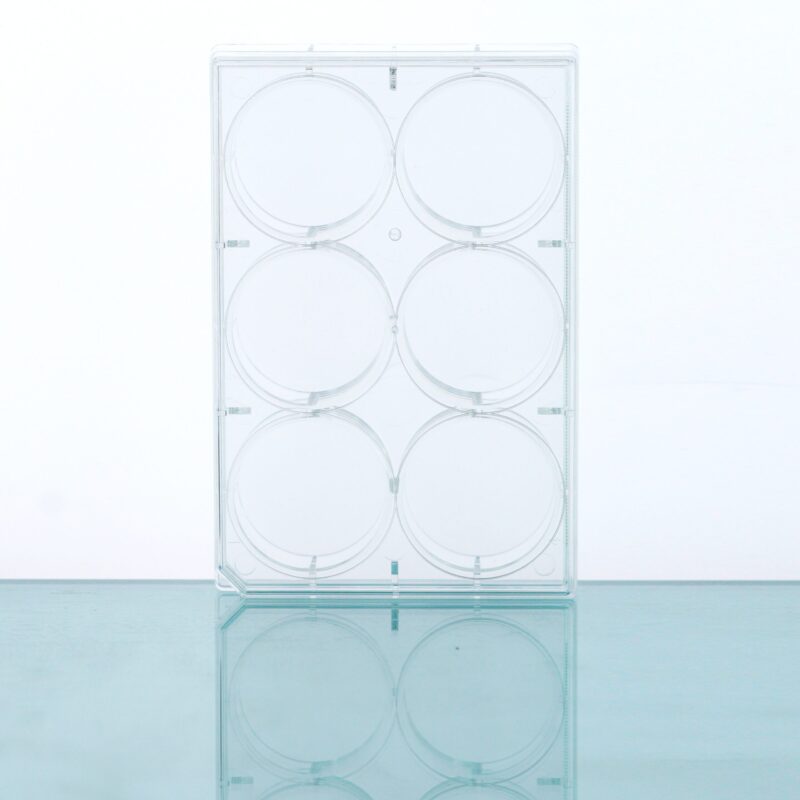

6 Well	9.5	1.9-2.9	Flat Bottom	Clear	Individually Packaged	1	50	703001

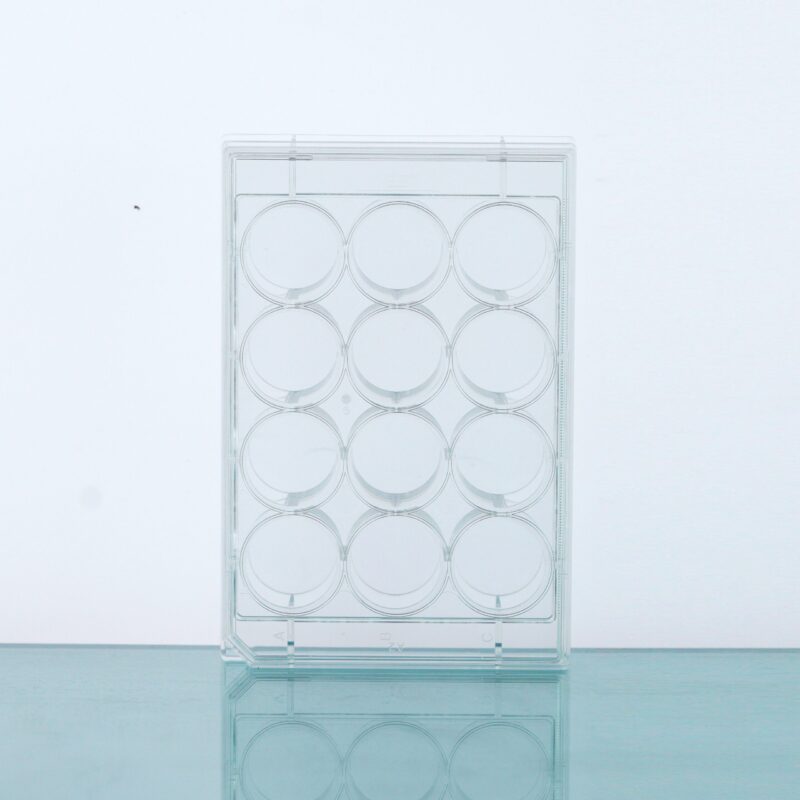

12 Well	3.6	0.76-1.14	Flat Bottom	Clear	Individually Packaged	1	50	712001

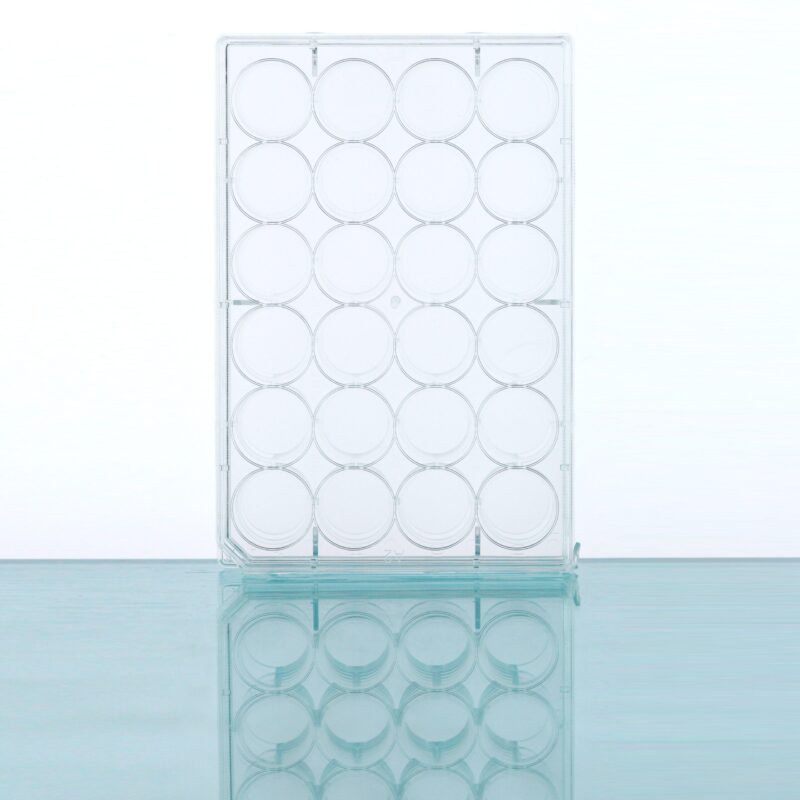

24 Well	1.9	0.38-0.57	Flat Bottom	Clear	Individually Packaged	1	50	702001

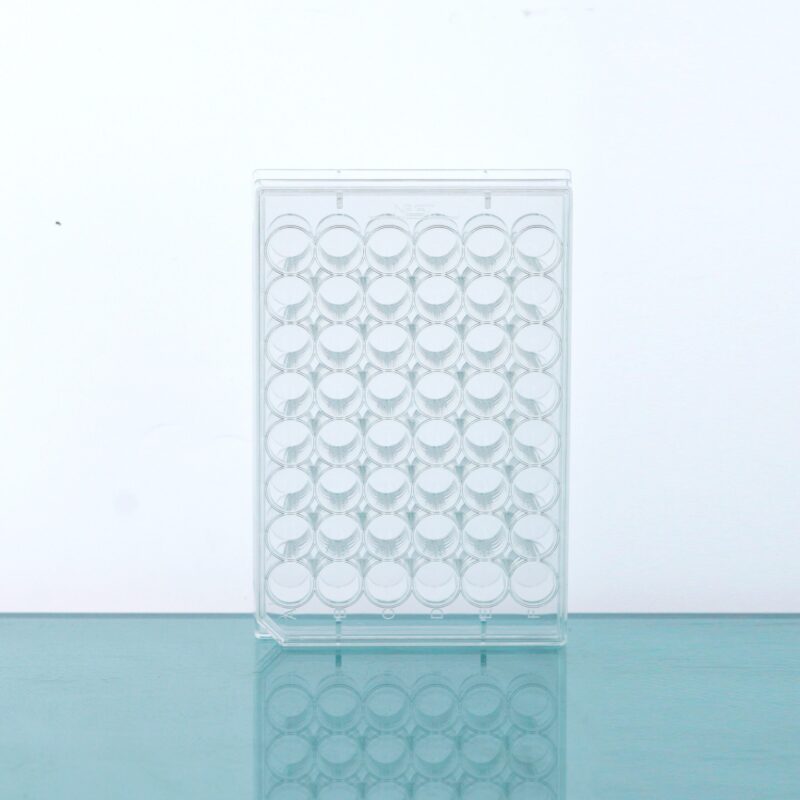

48 Well	0.88	0.19-0.285	Flat Bottom	Clear	Individually Packaged	1	50	748001

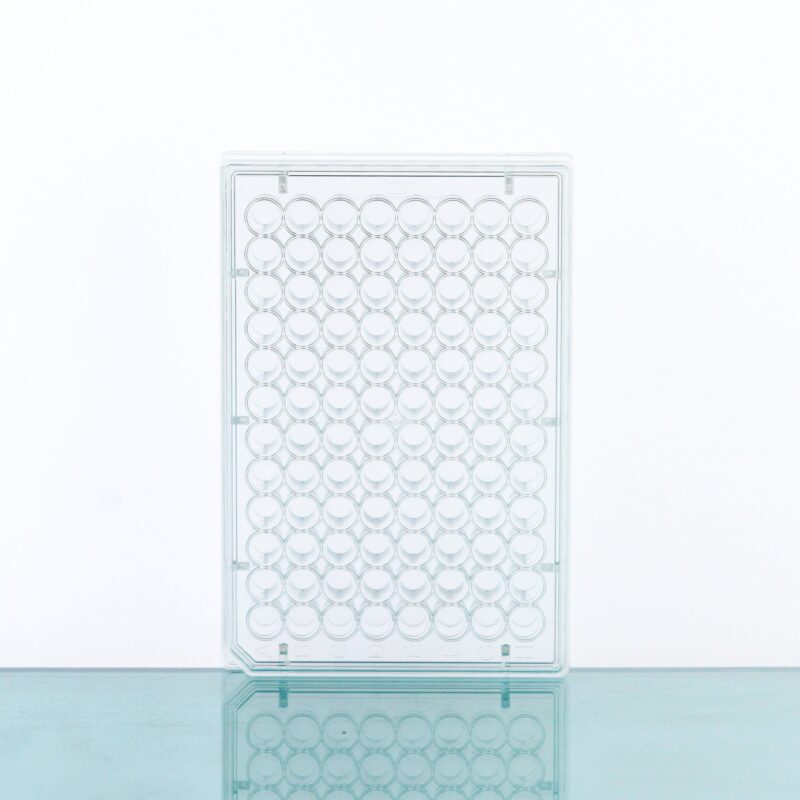

96 Well	0.32	0.1-0.2	Flat Bottom	Clear	Individually Packaged	1	100	701001

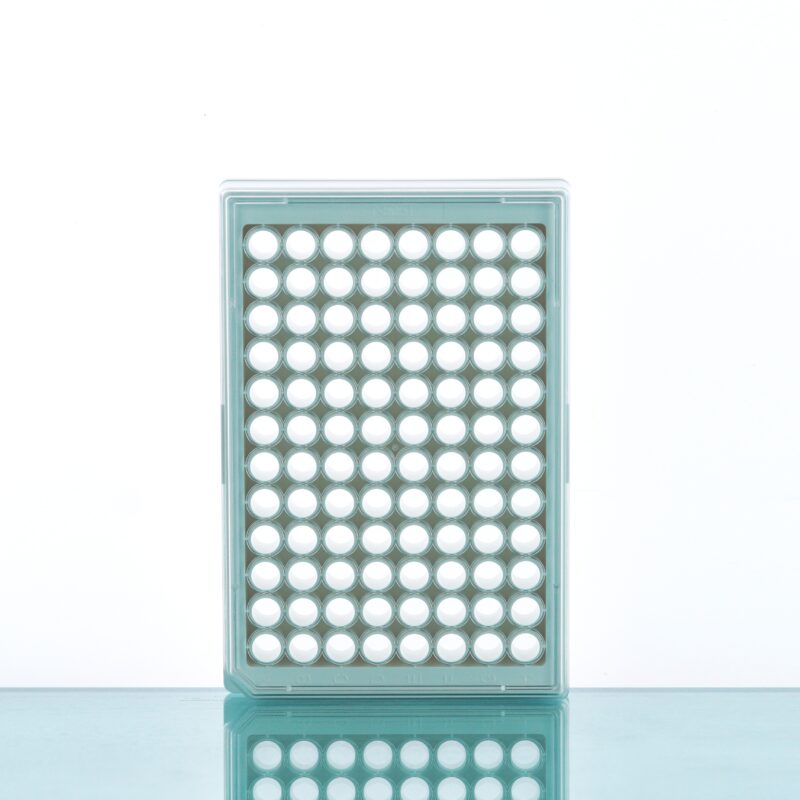

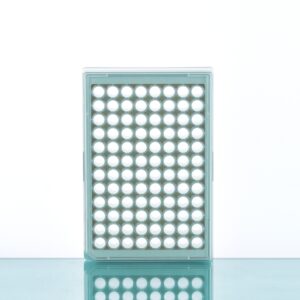

96 Well Clear PS Bottom	0.32	0.1-0.2	Flat Bottom	White, transparent bottom	Individually Packaged	1	30	701701
96 Well Clear PS Bottom	0.32	0.1-0.2	Flat Bottom	Black, transparent bottom	Individually Packaged	1	30	701401

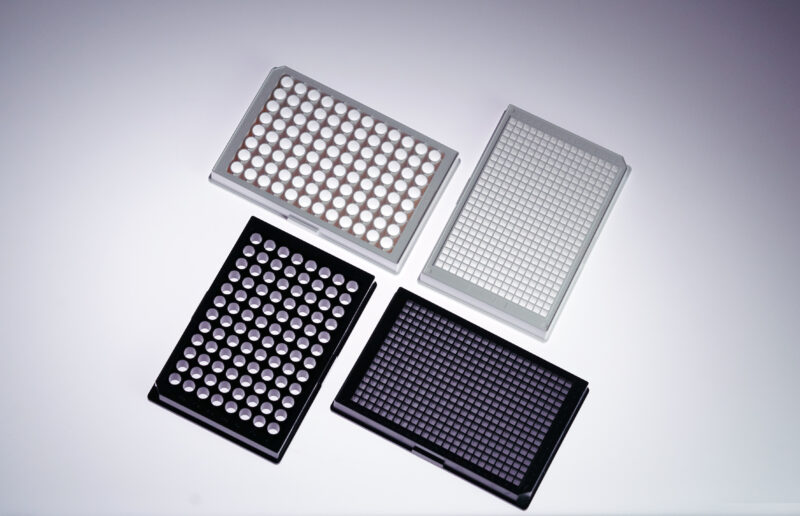

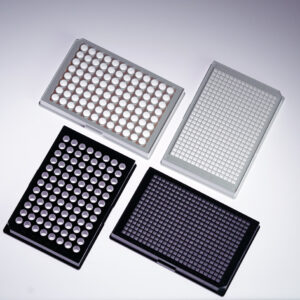

Black/White Clear Bottom Cell Culture Plate

The bottom of the wells is made of high-transparency PS material, performance. This material avoids optical distortion even under high magnification microscopy. On the other hand, the well walls are made of light-shielding PS material to prevent cross-contamination.
Plates with a black frame are commonly used for fluorescence detection, while plates with a white frame are typically used for luminescence detection. Occasionally, white-framed plates are also used to enhance fluorescence signal intensity.

Product	Recommendation Experiment- Bottom Reading	Notes
White transparentbottom	Colorimetric Assay/ Absorbance Chemiluminescence Method	Cellular visualization operations permitted in cell detection and analysis experiments.
Black transparentbottom	Fluorescence Intensity Method (FI) Fluorescence Resonance Energy Transfer (FRET)

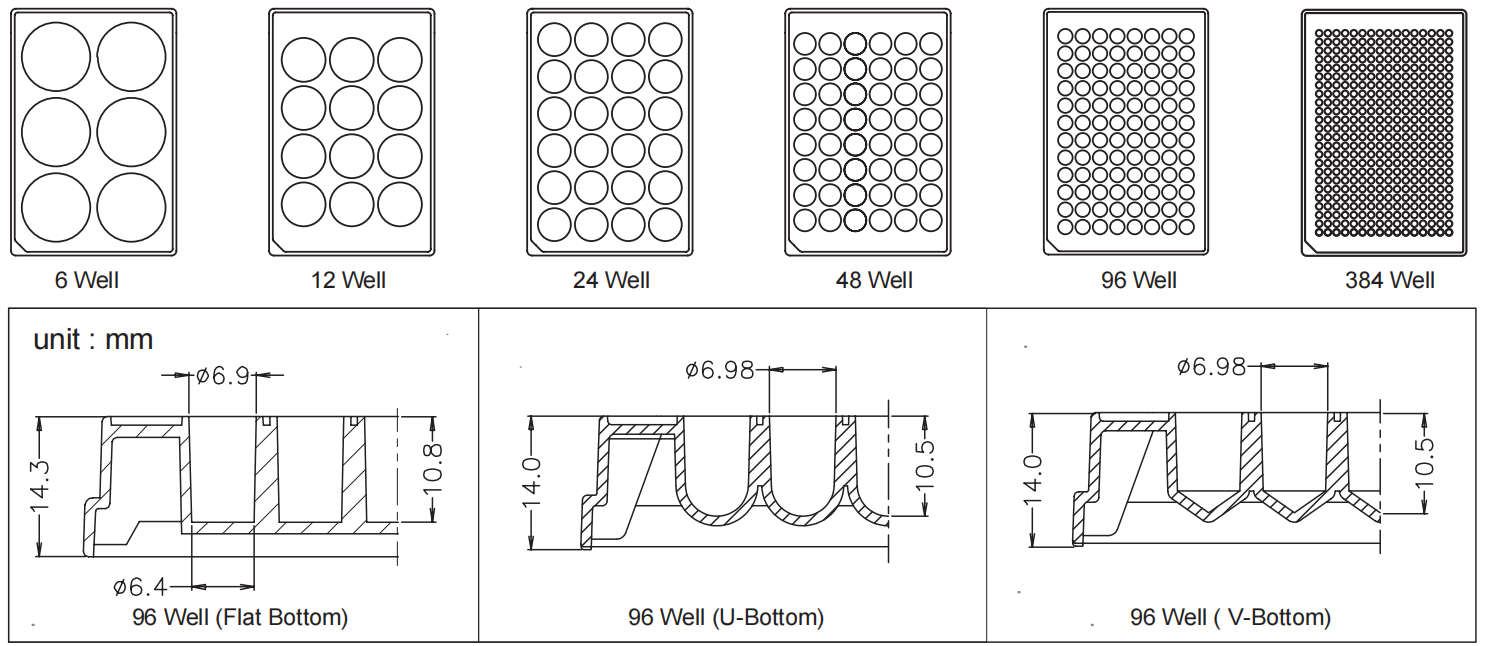

Technical Drawing of Cell Culture Plates

Manufacturers Cross Reference

Nest SKU	Plate Format	Cell Treat	Corning	Falcon	Fisher	Greiner	VWR	Use Case
701001	96 Well Cell Culture Plate, flat, TC Treated	229195	3599, 3696	353072	FB012931	655160 & 655180	10062-900	Adherent cell culture (e.g., HEK293, CHO, fibroblasts)
701002	96 Well Cell Culture Plate, flat, TC Treated	N/A	3697	353075	07-200-334	655182 & 655162	29444-316	Cell viability/proliferation assays (MTT, WST-1, Alamar Blue)
701003	96 Well Cell Culture Plate, flat, TC Treated	N/A	3599, 3696	353072	07-200-92	655160 & 655180	29444-062	Microscopy and imaging applications
701011	96 Well Cell Culture Plate, Flat, Non-Treated	229592	N/A	351172	08-772-53	655185	10861-562	Suspension cell culture (e.g., hybridomas, lymphocytes)
701201	96 Well Cell Culture Plate, V-bottom, TC Treated	229506	3894	N/A	07-200-96	651160 & 651180	29442-068	Concentrating small sample volumes
701211	96 Well Cell Culture Plate, V-bottom, Non-Treated	N/A	3896	N/A	07-200-107	N/A	29442-400	Diagnostic assays requiring complete sample retrieval
701401	96-well Microplates, Black/Clear Bottom, Polystyrene, TC Treated	N/A	N/A	353219	08-772-225	655087 & 655090	89022-352	Cell imaging with fluorescent dyes
701701	96-well Microplates, White/Clear Bottom, Polystyrene, TC Treated	N/A	N/A	353377	BD353377	655088 & 655098	89218-098	Luminescence assays (e.g., luciferase)
748001	48 Well Cell Culture Plate, Flat, TC Treated	229147 & 229148	3548	353078	FB012930	677165 & 677180	10062-898	Ideal for adherent cell culture
748002	48 Well Cell Culture Plate, Flat, TC, Treated	N/A	3338	353230	13-700-435	677165	89089-836	Designed for general cell-based assays such as ELISA prep
748003	48 Well Cell Culture Plate, Flat, TC Treated	N/A	3548	353078	07-200-86	677165 & 677180	29442-048	Used for high-throughput screening and compound testing where moderate well volume is required.
748011	48 Well Cell Culture Plate, Flat, Non-Treated	229590	N/A	351178	08-772-52	677102	15705-062	Best for suspension cell culture
702001	24 Well Cell Culture Plate, Flat, TC Treated	229123, 22124	3526	353047	FB012929	662160	10062-896	Adherent cell expansion
702002	24 Well Cell Culture Plate, flat, TC Treated	N/A	3527	353226, 353935	07-200-740	662165	29444-580	Transfection experiments
702003	24 Well Cell Culture Plate, Flat, TC Treated	N/A	3526	353047	09-761-146	662160	29443-952	Protein expression and collection
702011	24 Well Cell Culture Plate, Flat, Non-Treated	229548	3473	351147	07-200-602	662102	10861-558	Suspension cell culture
712001	12 Well Cell Culture Plate, Flat, TC Treatd	229111 & 229112	3513	353043	FB012928	665180	10062-894	Ideal for adherent cell culture with larger growth area per well, commonly used for protein expression studies
712002	12 Well Cell Culture Plate, flat, TC Treated	N/A	3512	353225	07-200-81	665180	29442-038	Used for cell-based assays requiring more volume, such as transfection optimization
712003	12 Well Cell Culture Plate, Flat, TC Treated	N/A	3513	353043	07-200-82	665180	29442-040	Suitable for multi-condition experiments including drug dosing studies and time-course assays
712011	12 Well Cell Culture Plate, Flat, Non-Treated	229524	N/A	351143	08-772-50	665102	15705-059	Designed for suspension cell cultures such as immune cells or hybridomas.
703001	6 Well Cell Culture Plate, Flat, TC Treated	229105, 229106	3516	353046	FB012927	657165	10062-892	Large-scale adherent cell culture
703002	6 Well Cell Culture Plate, flat, TC Treated	N/A	3506	353934	07-200-80	657165	29442-036	Large-scale adherent cell culture
703003	6 Well Cell Culture Plate, Flat, TC Treated	N/A	3516	353046	07-200-83	657165	29442-042	Large-scale adherent cell culture
703011	6 Well Cell Culture Plate, Flat, Non-Treated	229512	3471	351146	07-200-601	703011	10861-554	Suspension culture scale-up

Generated by wpDataTables

Need a product not currently in stock? for availability and pricing.

Nest tissue culture plates are designed for growing multiple cell cultures simultaneously. They are available in 6, 12, 24, 48, 96, and 384-well formats, with options that are tissue culture treated for adherent cell lines or left untreated for suspension cell lines. Plate configurations include flat, round (U), and V-bottom wells to suit different applications.
All Nest plates feature alphanumeric well markings for easy identification and raised well rims that help minimize evaporation and cross-contamination. Grooves and support feet ensure stable stacking, while the SBS/ANSI standard footprint makes them fully compatible with automated plate handlers, making them ideal for high-throughput workflows.
